Feature

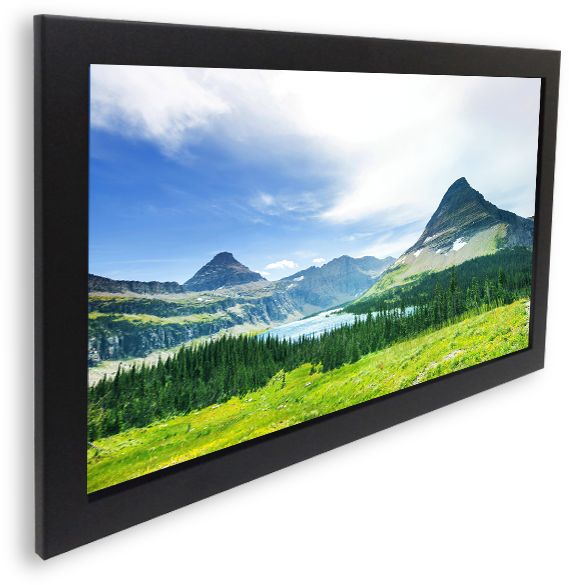

    • Open Frame Touch Monitor uses a low-power, light and open-frame IR touch screen monitor that can be used in a variety of environments
      by supporting the resolution of Full-HD.
    • Industrial, commercial, public, etc. provide the performance that can be used in
      various display systems.
    • High sensitivity of the infrared system.
      There is no damage to the touch glass by an external stimulus.
    • Touch screen is recognized as a HID device,
      simply plugging the touch without the need for a separate USB drivers on your PC,
      you can use the touch immediately and automatically recognized.
    • Touch screen is basically a ten-point multi touch support.
    • There are mounting holes that can be attached to the wall.
    • Produced available inch : 10.4” / 12.1” / 15” / 17” / 19” / 21.5” / 22” / 23” / 24” / 27” / 32” / 42” / 46” / 55”

Applications

  • Exhibitions / Video Digital Signage, Touch Applications, Kiosk

Specifications

SPEC DETAILED CONTENTS
Model HST-215LO
Display Size W 523.5 / H 315 / D 58.7mm
Touch Screen Infrared Type (10 Point multi)
Spec Inch 21.5“ (Wide)
Resolution 1920*1080 / Full-HD
Brightness 250cd/ m2
Contrast Ratio 1000:1
Response Time 5ms
Viewing Angle H 140 / V 120
I/O Port D-SUB * 1, DVI * 1, Touch USB(B) Port * 1
Sound None
VESA Mount 100 * 100 (mm)
Case Metal
Supported OS Win XP / Win7 / Win8 / Win10
Power 12V DC, 3~5A Adaptor
